CableSeal 2.5mm

Cable wire seals

$17.60
inc. GST In Stock
In stock  Laser markings  Recyclable metals  Customised in Australia  Rapid turnaround available

Utility meters Intermodal containers Sealing tautliners Sealing valves Sealing equipment Sealing drums Multi purpose Sealing containers


Colour
Packing
Customised



Calculate Shipping

Please note that the online prices apply exclusively to self-checkout transactions and do not extend to phone, email, in-store orders and customers with credit terms.


Product Information

The versatile CableSeal 2.5mm is a user-friendly and highly tamper-evident seal that offers various cable lengths to secure different applications with unique security requirements. As soon as the cable passes through the one-way locking mechanism, the CableSeal 2.5mm is secured, making it an effective security solution. To enhance security and prevent tampering, the cable must be adjusted to fit tightly to the application.

With its strength and versatility, the CableSeal 2.5mm is ideal for securing a wide range of objects, including trucks, tanker trucks, air cargo containers, shipping containers, rail cars, calibrators, and valves. Its application is virtually limitless, and its effectiveness is guaranteed.

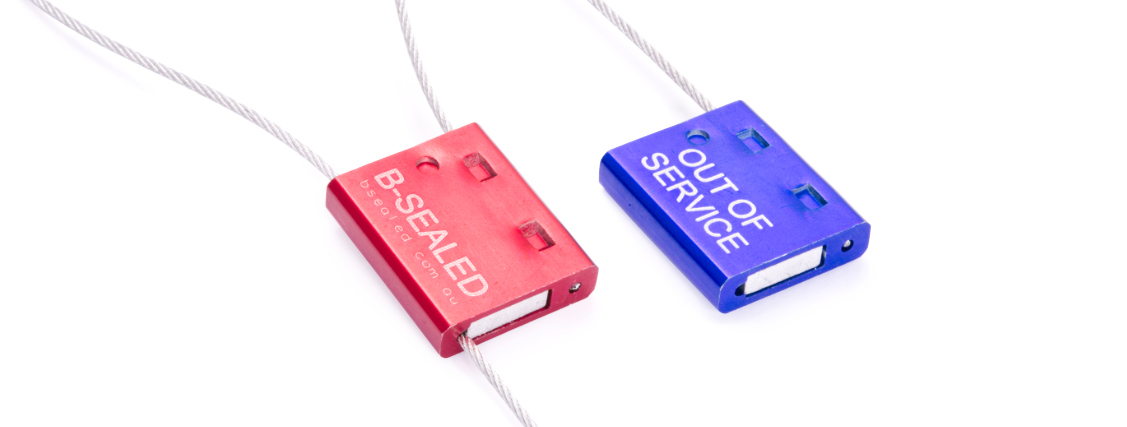

Customisation

Security Seals Online can provide you with wide range of customised seals. We can engrave using your own artwork or create a design for you. We offer a speedy service with a short lead-time.

Enhanced security features by adding your own markings or logo to the security seals.
Create additional instructions for your users.
Emphasise warnings.
Provide additional notes.

We provide different styles of security seals, ranging from pull tight seals to security labels.

Please note that the security seals will often already include a serial number. They may also include manufacturing markings too. Additional markings will be printed on the back side of the seal.

Rapid turnaround available. Customised using our local manufacturing facilities. Despatched in 24-48 hours*. Although we endevour to despatch all orders within 24-48 hours, there may be unforeseen delays. We will let you know if this hppens.

To accommodate other customised requests may include a minimum order quantity. If you need help with customising, just send us an email and we will get back to you as soon as possible.

Various CableSeals 2.5mm colours available

Braided steel cable

will splay upon cutting to prevent rejoining

Anodised & laser engraved

for high contrast and easy-to-read printing


Comparison Table

  CableSeal Micro 1.5 CableSeal 1.5 CableSeal EX 1.5 CableSeal 2.5 CableSeal 2.5+ CableSeal 3.5 CableSeal 3.5+ CableSeal 5.0 HexSeal Fixed 1.8 HexSeal Breakaway 1.8 HexSeal Pull-Tight 1.8 PlaskaLock v2 PlaskaLock v2 Type-F PlaskaLock v2 Nylon Type-F

wire length 200mm 300mm 300mm 300mm 1,000mm
2,000mm
4,000mm
300mm 1,000mm 300mm 220mm 325mm 300mm 150mm 100mm 100mm
wire diameter 1.5mm 1.5mm 1.5mm 2.5mm 2.5mm 3.5mm 3.5mm 5.0mm 1.8mm 1.8mm 1.8mm 1.5mm
1.8mm
1.5mm 1.5mm
material galvanised steel
aluminium
die-casted zinc alloy
galvanised steel
aluminium
die-casted zinc alloy
stainless steel
aluminium
die-casted zinc alloy
plastic
galvanised steel
aluminium
die-casted zinc alloy
galvanised steel
aluminium
die-casted zinc alloy
galvanised steel
aluminium
die-casted zinc alloy
galvanised steel
aluminium
die-casted zinc alloy
galvanised steel
aluminium
die-casted zinc alloy
abs plastic
stainless steel
galvanised steel
abs plastic
stainless steel
galvanised steel
abs plastic
stainless steel
galvanised steel
polypropylene plastic
chrome steel
polypropylene plastic
chrome steel
polypropylene plastic
nylon
locking head 24mm x 14mm x 4.9mm 25mm x 20mm x 6.3mm 25mm x 25mm x 7.5mm 25mm x 20mm x 6.3mm 25mm x 20mm x 6.3mm 25mm x 27.6mm x 8mm 25mm x 27.6mm x 8mm 28mm x 37mm x 9mm 27mm x 20mm 27mm x 20mm 26mm x 12mm 40mm x 24mm x 6.3mm 40mm x 24mm x 6.3mm 40mm x 24mm x 6.3mm
break strength >250kg-f >250kg-f >250kg-f >450kg-f >450kg-f >1,000kg-f >1,000kg-f >1,000kg-f >150kg-f >150kg-f >150kg-f >120kg-f >100kg-f
iso/pas 17712           yes yes yes

Specifications

Features Cables are non-preformed galvanised steel aircraft cable and will splay upon cutting thereby preventing rejoining
Body is made from corrosive resistant aluminium alloy
Unique locking mechanism for minimal reversal at engagement
Material Cable: Braided steel cable
Body: Aluminium alloy
Colours Red
Blue
Gold / Yellow
Green
Dimensions Cable length: 300mm
Cable diameter: 2.5mm
Locking body length: 25mm
Locking body width: 20.5mm
Locking body height: 6.3mm
Markings Serial numbers

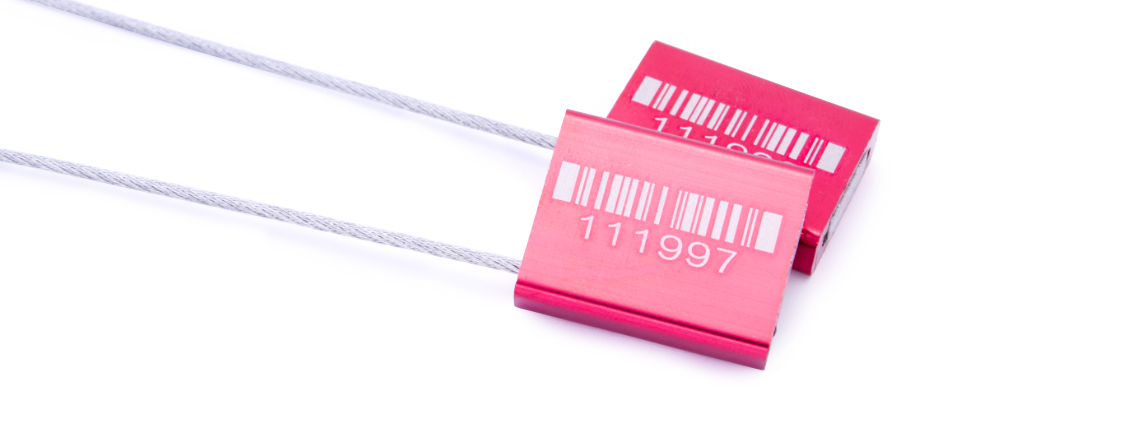

Barcode (available on selected colours only)

Customised
Serial numbers
Barcode (available on selected colours only)
Customised markings (back side)

* May include B-Sealed markings
Print method Laser engraved
Breaking strength Tensile strength of 450kg-f
Applications Shipping containers
Trucks
Rail freight
Utility meters & valves
Plastic distribution boxes
Valves in petrochemical industry
Recycled water taps
Customisations Custom markings
Colours
Cable length
Numbering
* Minimum order quantity required
For more information bsealed.co/cableseal
