CableSeal Micro 1.5mm
Cable wire seals
Notify me when back in stock
Please note that the online prices apply exclusively to self-checkout transactions and do not extend to phone, email, in-store orders and customers with credit terms.
Product Information

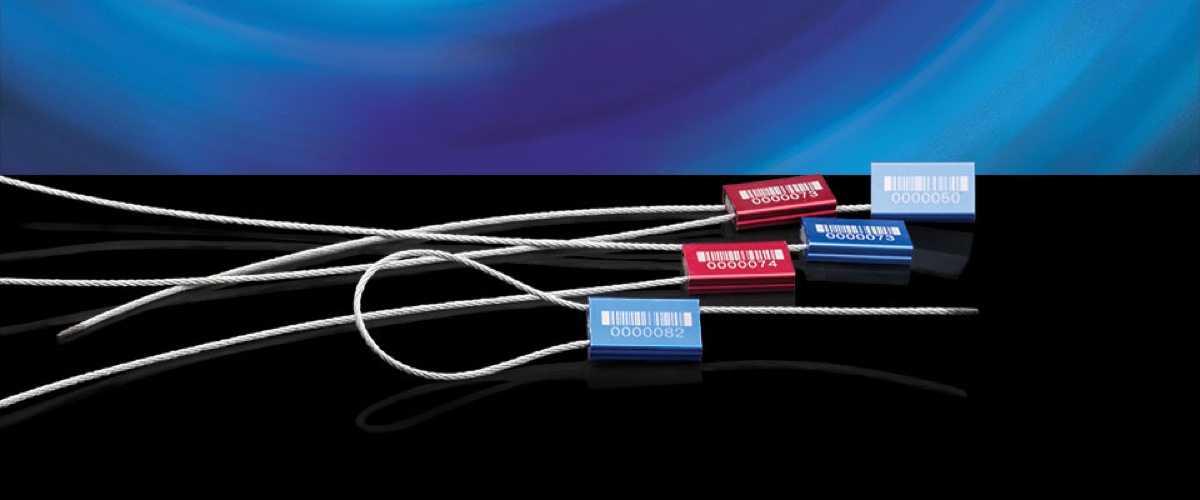

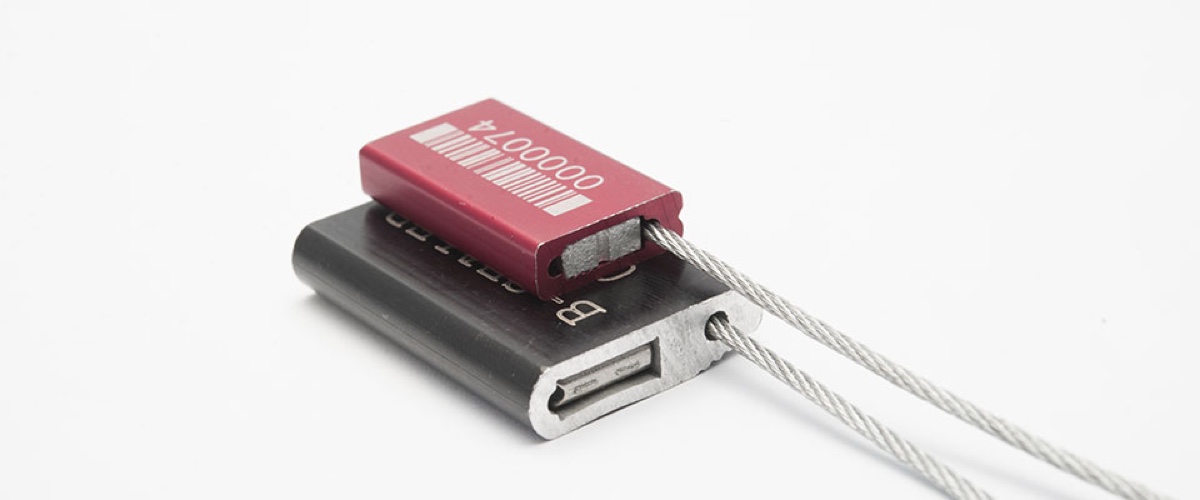

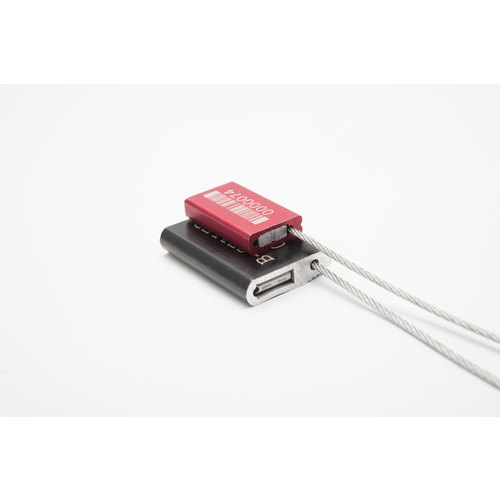

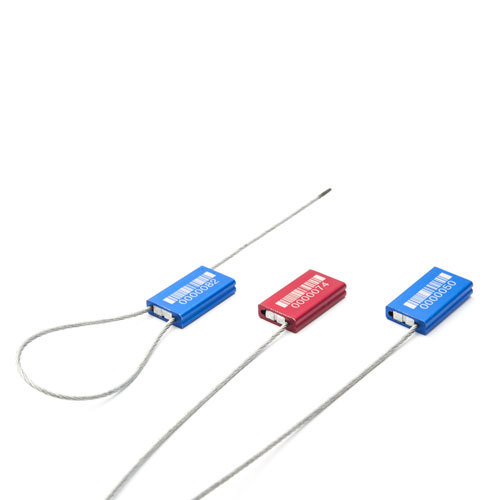

The CableSeal Micro is a compact security seal that maintains a small size without compromising on cable diameter. Its body measures just 14x24mm, but it provides a high level of security. The seal is made from lightweight aluminium extrusion and features die-casted zinc alloy locking mechanisms, making it suitable for outdoor use. The aluminium casing is anodised, allowing for high-contrast printing when laser engraved. The CableSeal Micro is an ideal solution for applications where a small, discreet security seal is required.
Customisation
Security Seals Online can provide you with wide range of customised seals. We can engrave using your own artwork or create a design for you. We offer a speedy service with a short lead-time.
Enhanced security features by adding your own markings or logo to the security seals.
Create additional instructions for your users.
Emphasise warnings.
Provide additional notes.
We provide different styles of security seals, ranging from pull tight seals to security labels.
Please note that the security seals will often already include a serial number. They may also include manufacturing markings too. Additional markings will be printed on the back side of the seal.
Rapid turnaround available. Customised using our local manufacturing facilities. Despatched in 24-48 hours*. Although we endevour to despatch all orders within 24-48 hours, there may be unforeseen delays. We will let you know if this hppens.
To accommodate other customised requests may include a minimum order quantity. If you need help with customising, just send us an email and we will get back to you as soon as possible.
Braided steel cablewill splay upon cutting to prevent rejoining |
 |
 |
|
 |
 |
Anodised & laser engravedfor high contrast and easy-to-read printing |
Comparison Table
| CableSeal Micro 1.5 | CableSeal 1.5 | CableSeal EX 1.5 | CableSeal 2.5 | CableSeal 2.5+ | CableSeal 3.5 | CableSeal 3.5+ | CableSeal 5.0 | HexSeal Fixed 1.8 | HexSeal Breakaway 1.8 | HexSeal Pull-Tight 1.8 | PlaskaLock v2 | PlaskaLock v2 Type-F | PlaskaLock v2 Nylon Type-F | |
 |
 |
 |
|
|
|
|
|
 |
|
 |
 |
|
|
|
| wire length | 200mm | 300mm | 300mm | 300mm | 1,000mm 2,000mm 4,000mm |
300mm | 1,000mm | 300mm | 220mm | 325mm | 300mm | 150mm | 100mm | 100mm |
| wire diameter | 1.5mm | 1.5mm | 1.5mm | 2.5mm | 2.5mm | 3.5mm | 3.5mm | 5.0mm | 1.8mm | 1.8mm | 1.8mm | 1.5mm 1.8mm |
1.5mm | 1.5mm |
| material | galvanised steel aluminium die-casted zinc alloy |
galvanised steel aluminium die-casted zinc alloy |
stainless steel aluminium die-casted zinc alloy plastic |
galvanised steel aluminium die-casted zinc alloy |
galvanised steel aluminium die-casted zinc alloy |
galvanised steel aluminium die-casted zinc alloy |
galvanised steel aluminium die-casted zinc alloy |
galvanised steel aluminium die-casted zinc alloy |
abs plastic stainless steel galvanised steel |
abs plastic stainless steel galvanised steel |
abs plastic stainless steel galvanised steel |
polypropylene plastic chrome steel |
polypropylene plastic chrome steel |
polypropylene plastic nylon |
| locking head | 24mm x 14mm x 4.9mm | 25mm x 20mm x 6.3mm | 25mm x 25mm x 7.5mm | 25mm x 20mm x 6.3mm | 25mm x 20mm x 6.3mm | 25mm x 27.6mm x 8mm | 25mm x 27.6mm x 8mm | 28mm x 37mm x 9mm | 27mm x 20mm | 27mm x 20mm | 26mm x 12mm | 40mm x 24mm x 6.3mm | 40mm x 24mm x 6.3mm | 40mm x 24mm x 6.3mm |
| break strength | >250kg-f | >250kg-f | >250kg-f | >450kg-f | >450kg-f | >1,000kg-f | >1,000kg-f | >1,000kg-f | >150kg-f | >150kg-f | >150kg-f | >120kg-f | >100kg-f | |
| iso/pas 17712 | yes | yes | yes |
Specifications
| Features | Lightweight aluminium casing with die-casted zinc alloy components. Seals are laser engraved with a variety of custom printing options. Cables are non-preformed steel and will splay upon cutting thereby preventing rejoining. Easy to pull-through locking mechanism will lock upon insertion and prevent pull-back. |
| Material | Cable: Braided steel cable Body: Aluminium alloy |
| Colours | Red Blue |
| Dimensions | Cable length: 200mm Cable diameter: 1.5mm Locking body length: 24mm Locking body width: 14mm Locking body height: 4.9mm |
| Markings | Serial numbers Barcode (available on selected colours only) Customised Serial numbers Barcode (available on selected colours only) Customised markings (back side) * May include B-Sealed markings |
| Print method | Laser engraved |
| Breaking strength | Tensile strength greater than 250kg-f |
| Applications | Shipping containers Trucks Rail freight Utility meters & valves Plastic distribution boxes Valves in petrochemical industry Recycled water taps |
| Customisations | Custom markings Colours Cable length Numbering Barcode * Minimum order quantity required |
| For more information | bsealed.co/cablesealmicro |
