EnaBolt 3
Flexible wire bolt seals
$130.00
inc. GST
In Stock
Notify me when back in stock
Please note that the online prices apply exclusively to self-checkout transactions and do not extend to phone, email, in-store orders and customers with credit terms.
Product Information

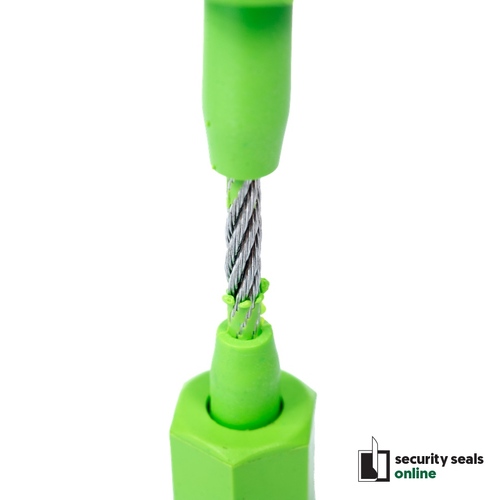

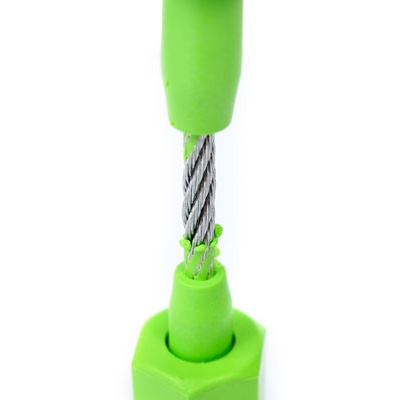

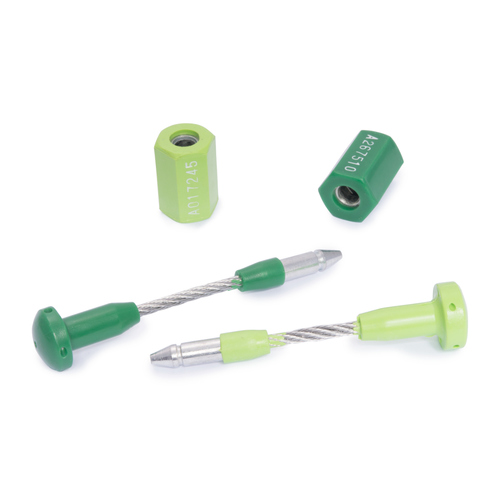

The EnaBolt 3 is a bolt seal with a unique feature that allows its steel cable to flex and adjust to lock into holes that may not be perfectly aligned. It is important to note that while the EnaBolt 3 is suitable for domestic use, it is not recommended for exportation of containers from Australia.
Steel cablewelded internally to the bolt |
 |
Comparison Table
| EnaBolt 1c | EnaBolt 2a | EnaBolt 3 | EnaBolt 4 | EnaBolt 5a | EnaBolt 6 | EnaBolt 7 | EnaBolt 8 | EnaBolt mini | HanaLock | |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
| barrel length | 31mm | 37.0mm | 18.0mm | 17.0mm | 33.8mm | 33mm | 34mm | 31mm | 25mm | 35mm |
| barrel diameter | 23.6mm | 23.5mm | 20.0mm | 18.0mm | 24.5mm | 20.5mm | 15.0mm | 22mm | 12.7mm | 22.8mm |
| pin length | 87.4mm | 84.5mm | 87.0mm | 70mm | 85.5mm | 74mm | 74mm | 81.6mm | 37mm | 76mm (uncoated) 78.5mm (coated) |
| pin diameter | 8.0mm steel pin (11.0mm inc. coating) |
8.0mm steel pin (10.0mm inc. coating) |
4.0mm cable wire | 5.0mm steel pin (7.0mm inc. coating) |
8.0mm steel pin (11.0mm inc. coating) |
8.0mm steel pin | 8.0mm steel pin (11.0mm inc. coating) |
8.0mm steel pin | 4mm | 8.0mm (uncoated) 12.6mm (coated) |
| material | steel abs plastic |
steel abs plastic |
steel abs plastic |
steel abs plastic |
steel abs plastic |
steel abs plastic |
steel abs plastic |
steel | steel abs plastic |
steel abs plastic |
| locking distance | 54.9mm | 44.0mm | 54.0mm | 44.0mm | 48mm | 48mm | 48mm | tba | 20mm | 54mm (uncoated) 41mm (coated) |
| break strength | >1,500kg-f | >1,500kg-f | >660kg-f | >500kg-f | >1,500kg-f | >1,200kg-f | >1,500kg-f | >1,500kg-f | >300kg-f | >1,000kg-f |
| export friendly | yes | yes | no | no | yes | yes | yes | yes | no | yes |
| iso/pas 17712 | yes | yes | yes | yes | yes | yes | yes | |||
| anti-spin | yes | yes | no | no | yes | yes | yes | yes | no | yes, limited |
| encapulation | no | no | no | no | no | no | yes | no | no | no |
| feature | flexible cable | all-metal build | 180° rotation limit |
Specifications
| Features | 4.0mm diameter carbon steel cable for strength while providing flexibility. Made up of multiple strands of wire to make it difficult to rejoin Plastic enclosure for the barrel is made of high quality ABS material to withstand impact Components made of A3 iron for durability |
| Material | Pin: Steel cable Barrel: Steel Body: ABS plastic |
| Colours | Dark Green Green |
| Dimensions | Barrel diameter: 18mm Pin diameter: 4mm Pin length: 87mm |
| Markings | Serial number on barrel |
| Print method | Hot stamped |
| Breaking strength | Tensile strength of 9.8kN |
| Applications | Applications Cargo containers Trucks Trailer vehicle doors Rail freight |
| Customisations | Custom markings Colours Numbering * Minimum order quantities required |
| For more information | bsealed.co/enabolt3 |
