EnaBolt 5b
Heavy duty bolt seals
Ask us!
Notify me when back in stock
Please note that the online prices apply exclusively to self-checkout transactions and do not extend to phone, email, in-store orders and customers with credit terms.
Product Information

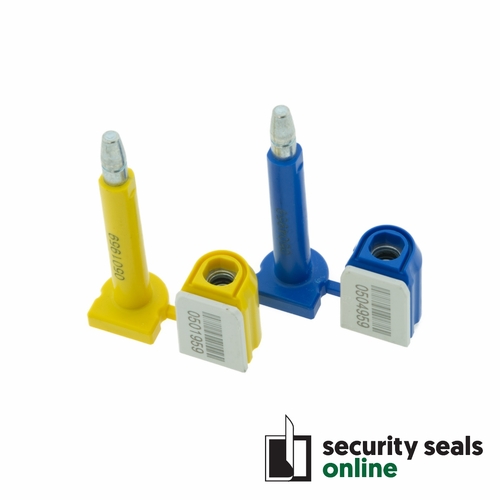

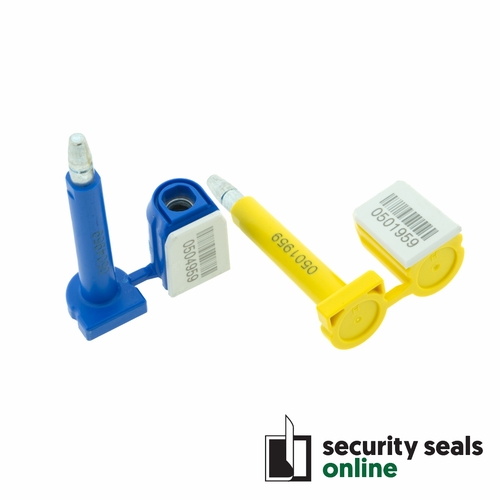

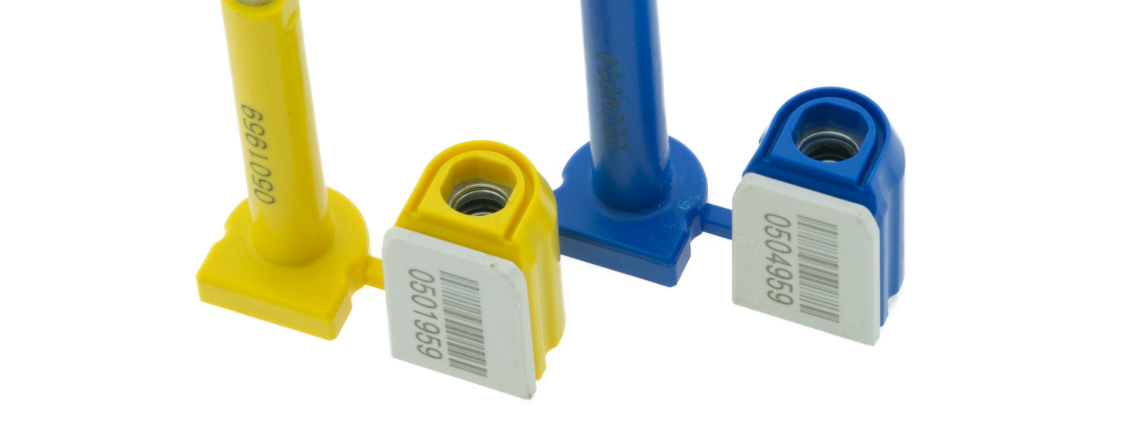

The EnaBolt 5B is a high-security bolt seal compliant with ISO/PAS 17712:2013 and C-TPAT standards. Its anti-spin design resists high-speed tampering techniques, while the one-time injection moulding process enhances tamper evidence and security. A large flag provides clear space for easy identification and custom markings.
Comparison Table
| EnaBolt 1c | EnaBolt 2a | EnaBolt 3 | EnaBolt 4 | EnaBolt 5a | EnaBolt 6 | EnaBolt 7 | EnaBolt 8 | EnaBolt mini | HanaLock | |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
| barrel length | 31mm | 37.0mm | 18.0mm | 17.0mm | 33.8mm | 33mm | 34mm | 31mm | 25mm | 35mm |
| barrel diameter | 23.6mm | 23.5mm | 20.0mm | 18.0mm | 24.5mm | 20.5mm | 15.0mm | 22mm | 12.7mm | 22.8mm |
| pin length | 87.4mm | 84.5mm | 87.0mm | 70mm | 85.5mm | 74mm | 74mm | 81.6mm | 37mm | 76mm (uncoated) 78.5mm (coated) |
| pin diameter | 8.0mm steel pin (11.0mm inc. coating) |
8.0mm steel pin (10.0mm inc. coating) |
4.0mm cable wire | 5.0mm steel pin (7.0mm inc. coating) |
8.0mm steel pin (11.0mm inc. coating) |
8.0mm steel pin | 8.0mm steel pin (11.0mm inc. coating) |
8.0mm steel pin | 4mm | 8.0mm (uncoated) 12.6mm (coated) |
| material | steel abs plastic |
steel abs plastic |
steel abs plastic |
steel abs plastic |
steel abs plastic |
steel abs plastic |
steel abs plastic |
steel | steel abs plastic |
steel abs plastic |
| locking distance | 54.9mm | 44.0mm | 54.0mm | 44.0mm | 48mm | 48mm | 48mm | tba | 20mm | 54mm (uncoated) 41mm (coated) |
| break strength | >1,500kg-f | >1,500kg-f | >660kg-f | >500kg-f | >1,500kg-f | >1,200kg-f | >1,500kg-f | >1,500kg-f | >300kg-f | >1,000kg-f |
| export friendly | yes | yes | no | no | yes | yes | yes | yes | no | yes |
| iso/pas 17712 | yes | yes | yes | yes | yes | yes | yes | |||
| anti-spin | yes | yes | no | no | yes | yes | yes | yes | no | yes, limited |
| encapulation | no | no | no | no | no | no | yes | no | no | no |
| feature | flexible cable | all-metal build | 180° rotation limit |
Specifications
| Features | Seals are ISO/DIS 17712.3 and C-TPAT compliant. 8mm diameter steel pin. Barrel and pin have a 18mm diameter steel perch so the seal will stay applied to a standard ISO container even when the coating has been removed. Made of galvanised low carbon steel for durability and reliability. ABS coating provides evidence of tampering of the seal body. Anti-spin construction to defeat high-speed spin tampering techniques. Barrel and pin are connected as a matched pair for convenience. |
| Material | Pin: Steel Barrel: Steel Body: ABS + PP plastic |
| Colours | Yellow Blue Orange |
| Dimensions | Barrel diameter: TBA Pin diameter: TBA Perch width: TBA |

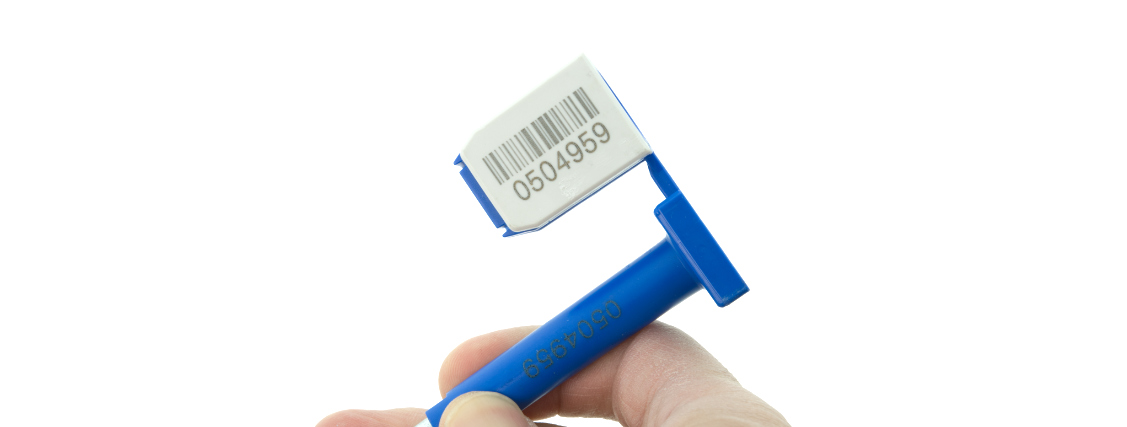

| Markings | Serial numbers on pin and barrel |
| Print method | Laser engraved |
| Breaking strength | Tensile strength >13kN |
| Applications | Shipping containers bound for US Trucks Rail Freight |
| Customisations | Custom markings Colours Numbering Barcode & QR Codes * Minimum order quantities required |
| For more information | TBA |
