EnaBolt 5b
Heavy duty bolt seals
Notify me when back in stock
Please note that the online prices apply exclusively to self-checkout transactions and do not extend to phone, email, in-store orders and customers with credit terms.
Product Information

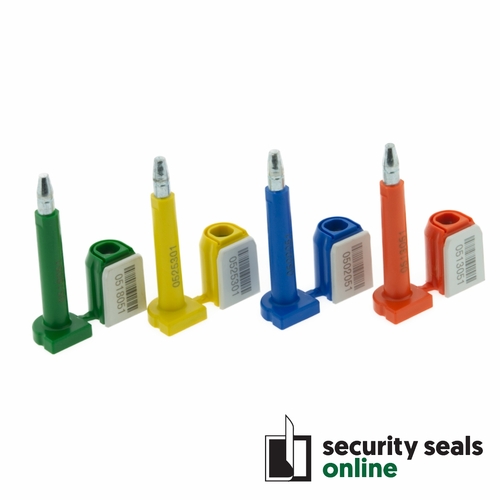

The EnaBolt 5B is a high-security bolt seal engineered to provide maximum protection for cargo and containers. Compliant with ISO/PAS 17712:2013 and C-TPAT standards, this seal is ideal for global shipping and logistics applications where tamper evidence and regulatory compliance are paramount. Its innovative anti-spin design ensures that attempts to rotate or tamper with the seal using high-speed techniques are easily detectable, maintaining the integrity of secured shipments throughout transit.
Manufactured using a one-time injection moulding process, the EnaBolt 5B provides enhanced tamper-evident properties, making it clear if any unauthorized access has been attempted. The seal’s large flag allows for clear laser-printed information, including serial numbers, barcodes, or custom company markings, providing traceability and simplifying cargo management. The dual-color injection design not only improves visual identification but also adds another layer of security against counterfeiting.
Designed for efficiency and reliability, the EnaBolt 5B is produced through automated processes to ensure consistent quality and uniformity across batches. Its anti-rotation function and robust construction make it highly durable, capable of withstanding harsh handling and environmental conditions. This seal is specifically designed to secure intermodal containers worldwide, offering peace of mind to shippers, logistics providers, and customs authorities. Removal requires bolt cutters, ensuring that once applied, the seal remains a reliable deterrent against tampering.
Comparison Table
| EnaBolt 1c | EnaBolt 2a | EnaBolt 3 | EnaBolt 4 | EnaBolt 4a | EnaBolt 5a | EnaBolt 5b | EnaBolt 6 | EnaBolt 7 | EnaBolt 8 | EnaBolt mini | HanaLock | |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
|
| barrel length | 31mm | 37.0mm | 18.0mm | 27mm | 33.5mm | 33.8mm | 34.4mm | 33mm | 34mm | 31mm | 25mm | 35mm |
| barrel diameter | 23.6mm | 23.5mm | 20.0mm | 18mm | 17mm | 24.5mm | 24.2mm | 20.5mm | 15mm | 22mm | 12.7mm | 22.8mm |
| pin length | 87.4mm | 84.5mm | 87.0mm | 70mm | 71mm | 85.5mm | 87mm | 74.0mm | 74mm | 81.6mm | 37mm | 76mm (uncoated) 78.5mm (coated) |
| pin diameter | 8.0mm steel pin (11.0mm inc. coating) |
8.0mm steel pin (10.0mm inc. coating) |
4.0mm cable wire | 5.0mm steel pin (7.0mm inc. coating) |
5.0mm steel pin (7.2mm inc. coating) |
8.0mm steel pin (11.0mm inc. coating) |
8.0mm steel pin (11.8mm inc. coating) |
8.0mm steel pin | 8.0mm steel pin (11.0mm inc. coating) |
8.0mm steel pin | 4mm | 8.0mm (uncoated) 12.6mm (coated) |
| material | steel abs plastic |
steel abs plastic |
steel abs plastic |
steel abs plastic |
steel abs plastic |
steel abs plastic |
steel abs plastic |
steel abs plastic |
steel abs plastic |
steel | steel abs plastic |
steel abs plastic |
| locking distance | 54.9mm | 44.0mm | 54.0mm | 44.0mm | 40mm | 48mm | 48mm | 48mm | 48mm | tba | 20mm | 54mm (uncoated) 41mm (coated) |
| break strength | >1,500kg-f | >1,500kg-f | >660kg-f | >500kg-f | >500kg-f | >1,500kg-f | >1,500kg-f | >1,200kg-f | >1,500kg-f | >1,500kg-f | >300kg-f | >1,000kg-f |
| export friendly | yes | yes | no | no | no | yes | yes | yes | yes | yes | no | yes |
| iso/pas 17712 | yes | yes | yes | yes | yes | yes | yes | yes | ||||
| anti-spin | yes | yes | no | no | yes | yes | yes | yes | yes | yes | no | yes, limited |
| encapulation | no | no | no | no | no | no | no | yes | no | no | no | |
| feature | flexible cable | dual-colour | all-metal build | 180° rotation limit |
Specifications
| Features | Seals are ISO/DIS 17712.3 and C-TPAT compliant. 8mm diameter steel pin. Barrel and pin have a 18mm diameter steel perch so the seal will stay applied to a standard ISO container even when the coating has been removed. Made of galvanised low carbon steel for durability and reliability. ABS coating provides evidence of tampering of the seal body. Anti-spin construction to defeat high-speed spin tampering techniques. Barrel and pin are connected as a matched pair for convenience. |
| Material | Pin: Steel Barrel: Steel Body: ABS + PP plastic |
| Colours | Yellow Blue Orange Green |
| Dimensions | Barrel diameter: 24.2mm Barrel length: 87mm Pin diameter: 8mm (steel), 11.8mm (inc. coating) |
| Markings | Pin: Serial number Barrel: Serial number & barcode (Code 128) |
| Print method | Laser engraved |
| Breaking strength | Tensile strength >13kN |
| Applications | Securing intermodal shipping containers for international and domestic transport Locking cargo trailers and freight trucks during transit Protection of railway containers and logistics wagons Securing warehouse storage units and high-value goods Port and terminal cargo security to meet customs and C-TPAT requirements Securing bulk shipments in supply chain operations Protection of high-value or sensitive shipments, including electronics, pharmaceuticals, and chemicals Ensuring compliance with regulatory and insurance requirements for cargo Temporary high-security locks for export or import containers Use in customs and border control inspections to provide tamper-evident verification |
| Customisations | Custom markings Colours Numbering Barcode & QR Codes |
| For more information | bsealed.co/enabolt5b |
