EnaBolt 8
All metal bolt seals
Notify me when back in stock
Please note that the online prices apply exclusively to self-checkout transactions and do not extend to phone, email, in-store orders and customers with credit terms.
Product Information

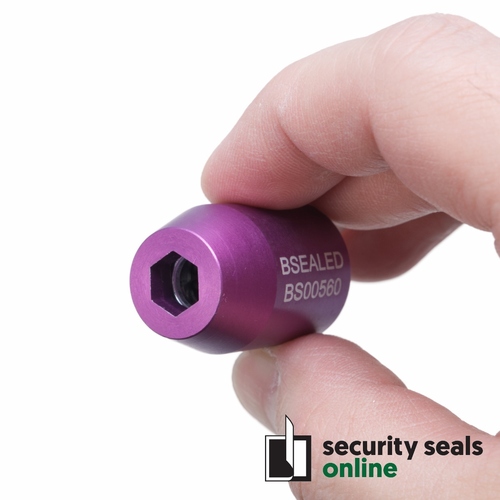

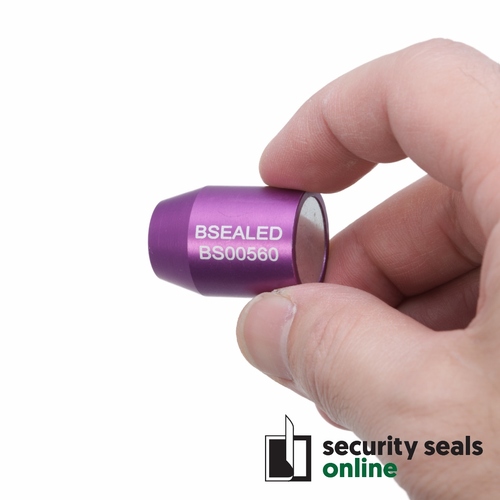

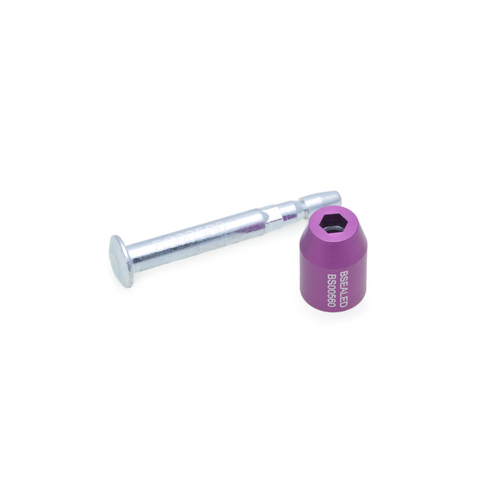

The EnaBolt 8 is a secure, all-metal bolt seal that is designed to enhance recyclability. With a durable build, this seal provides reliable security for a wide range of applications, including shipping containers, cargo trucks, and more. The matching serial numbers on the barrel and pin help ensure that the seal is not tampered with, and its unique construction makes it extremely difficult to break or remove without the use of special tools. The EnaBolt 8 is an ideal choice for companies looking for a more sustainable security solution that does not compromise on safety and protection.
Comparison Table
| EnaBolt 1c | EnaBolt 2a | EnaBolt 3 | EnaBolt 4 | EnaBolt 5a | EnaBolt 6 | EnaBolt 7 | EnaBolt 8 | EnaBolt mini | HanaLock | |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
| barrel length | 31mm | 37.0mm | 18.0mm | 17.0mm | 33.8mm | 33mm | 34mm | 31mm | 25mm | 35mm |
| barrel diameter | 23.6mm | 23.5mm | 20.0mm | 18.0mm | 24.5mm | 20.5mm | 15.0mm | 22mm | 12.7mm | 22.8mm |
| pin length | 87.4mm | 84.5mm | 87.0mm | 70mm | 85.5mm | 74mm | 74mm | 81.6mm | 37mm | 76mm (uncoated) 78.5mm (coated) |
| pin diameter | 8.0mm steel pin (11.0mm inc. coating) |
8.0mm steel pin (10.0mm inc. coating) |
4.0mm cable wire | 5.0mm steel pin (7.0mm inc. coating) |
8.0mm steel pin (11.0mm inc. coating) |
8.0mm steel pin | 8.0mm steel pin (11.0mm inc. coating) |
8.0mm steel pin | 4mm | 8.0mm (uncoated) 12.6mm (coated) |
| material | steel abs plastic |
steel abs plastic |
steel abs plastic |
steel abs plastic |
steel abs plastic |
steel abs plastic |
steel abs plastic |
steel | steel abs plastic |
steel abs plastic |
| locking distance | 54.9mm | 44.0mm | 54.0mm | 44.0mm | 48mm | 48mm | 48mm | tba | 20mm | 54mm (uncoated) 41mm (coated) |
| break strength | >1,500kg-f | >1,500kg-f | >660kg-f | >500kg-f | >1,500kg-f | >1,200kg-f | >1,500kg-f | >1,500kg-f | >300kg-f | >1,000kg-f |
| export friendly | yes | yes | no | no | yes | yes | yes | yes | no | yes |
| iso/pas 17712 | yes | yes | yes | yes | yes | yes | yes | |||
| anti-spin | yes | yes | no | no | yes | yes | yes | yes | no | yes, limited |
| encapulation | no | no | no | no | no | no | yes | no | no | no |
| feature | flexible cable | all-metal build | 180° rotation limit |
Specifications
| Features | Seals are ISO/PAS 17712 compliant. 8mm diameter steel pin. Removable by bolt cutters & eye protection is necessary. Anti-spin construction to defeat high-speed spin tampering techniques. |
| Material | Pin: Steel Barrel: Steel |
| Colours | Purple Yellow |
| Dimensions | Barrel diameter: 22mm Pin diameter: 9mm |
| Markings | Serial numbers on pin and barrel |
| Print method | Laser engraved |
| Breaking strength | Tensile strength >15kN |
| Applications | Cargo containers Trucks Trailer vehicle doors Rail freight Tautliners |
| Customisations | Custom markings Colours Numbering * Minimum order quantities required |
| For more information | bsealed.co/enabolt8 |
