EnaBolt mini
Indicative bolt seals
$16.50
inc. GST
In Stock
Notify me when back in stock
Please note that the online prices apply exclusively to self-checkout transactions and do not extend to phone, email, in-store orders and customers with credit terms.
Product Information
The EnaBolt Mini is a compact, high-security bolt seal specifically engineered to safeguard goods and equipment where space or aperture size is limited. Featuring a robust 4mm pin, it is perfectly suited for applications involving small containers, cabinets, utility boxes, courier bags, and other enclosures where traditional, larger bolt seals may not be compatible.
Comparison Table
| EnaBolt 1c | EnaBolt 2a | EnaBolt 3 | EnaBolt 4 | EnaBolt 4a | EnaBolt 5a | EnaBolt 5b | EnaBolt 6 | EnaBolt 7 | EnaBolt 8 | EnaBolt mini | HanaLock | |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
|
| barrel length | 31mm | 37.0mm | 18.0mm | 27mm | 33.5mm | 33.8mm | 34.4mm | 33mm | 34mm | 31mm | 25mm | 35mm |
| barrel diameter | 23.6mm | 23.5mm | 20.0mm | 18mm | 17mm | 24.5mm | 24.2mm | 20.5mm | 15mm | 22mm | 12.7mm | 22.8mm |
| pin length | 87.4mm | 84.5mm | 87.0mm | 70mm | 71mm | 85.5mm | 87mm | 74.0mm | 74mm | 81.6mm | 37mm | 76mm (uncoated) 78.5mm (coated) |
| pin diameter | 8.0mm steel pin (11.0mm inc. coating) |
8.0mm steel pin (10.0mm inc. coating) |
4.0mm cable wire | 5.0mm steel pin (7.0mm inc. coating) |
5.0mm steel pin (7.2mm inc. coating) |
8.0mm steel pin (11.0mm inc. coating) |
8.0mm steel pin (11.8mm inc. coating) |
8.0mm steel pin | 8.0mm steel pin (11.0mm inc. coating) |
8.0mm steel pin | 4mm | 8.0mm (uncoated) 12.6mm (coated) |
| material | steel abs plastic |
steel abs plastic |
steel abs plastic |
steel abs plastic |
steel abs plastic |
steel abs plastic |
steel abs plastic |
steel abs plastic |
steel abs plastic |
steel | steel abs plastic |
steel abs plastic |
| locking distance | 54.9mm | 44.0mm | 54.0mm | 44.0mm | 40mm | 48mm | 48mm | 48mm | 48mm | tba | 20mm | 54mm (uncoated) 41mm (coated) |
| break strength | >1,500kg-f | >1,500kg-f | >660kg-f | >500kg-f | >500kg-f | >1,500kg-f | >1,500kg-f | >1,200kg-f | >1,500kg-f | >1,500kg-f | >300kg-f | >1,000kg-f |
| export friendly | yes | yes | no | no | no | yes | yes | yes | yes | yes | no | yes |
| iso/pas 17712 | yes | yes | yes | yes | yes | yes | yes | yes | ||||
| anti-spin | yes | yes | no | no | yes | yes | yes | yes | yes | yes | no | yes, limited |
| encapulation | no | no | no | no | no | no | no | yes | no | no | no | |
| feature | flexible cable | dual-colour | all-metal build | 180° rotation limit |
Specifications
| Features | Low cost bolt seals. 4mm diameter steel pin. uitable for small locking holes. |
| Material | Pin: Steel Barrel: Steel Body: ABS plastic |
| Colours | Green |
| Dimensions | Barrel diameter: 15mm Barrel length: 25mm Pin diameter: 4mm Pin length: 40mm Locking length: 50mm Locking gap: 15mm |

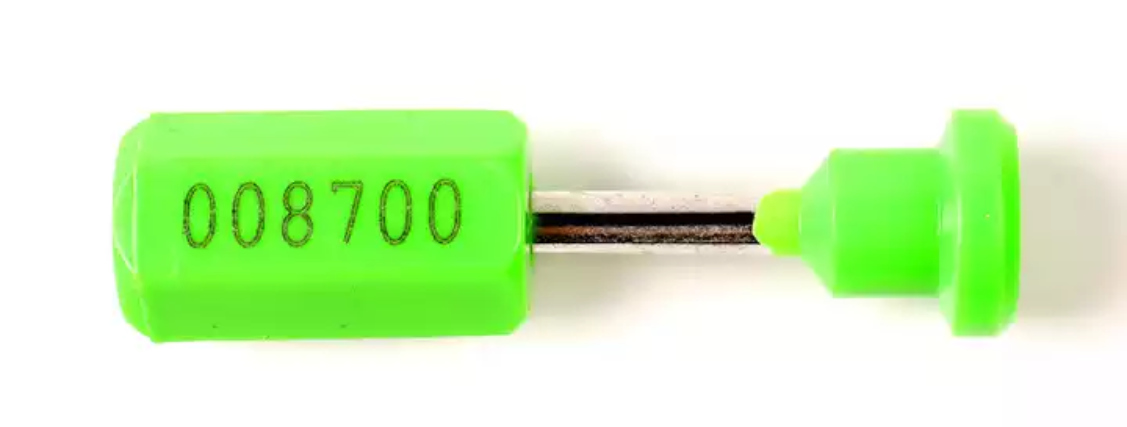

| Markings | Serial numbers on barrel |
| Print method | Laser engraved |
| Breaking strength | Tools required to remove |

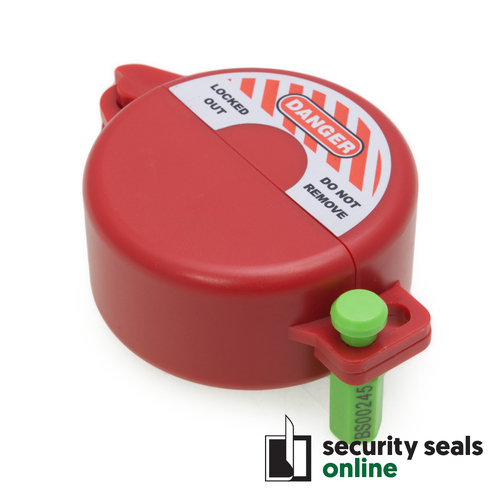

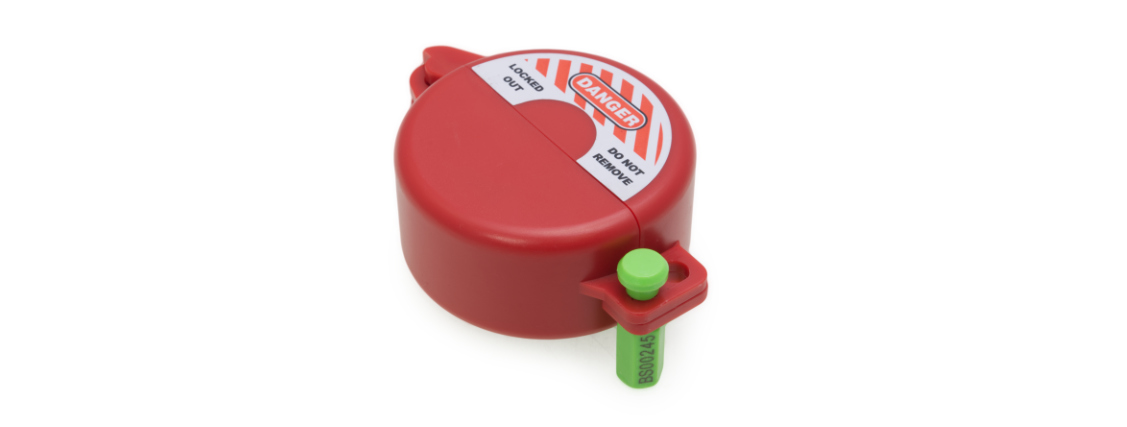

| Applications | Small shipping containers and enclosures Utility and electrical cabinets Toolboxes and equipment cases Cash boxes and secure storage units Courier and postal bags with reinforced locking points Airline catering and service carts Medical and pharmaceutical transport containers Retail and logistics trolleys Warehouse cages and roll pallets Meter boxes and inspection panels |
| Customisations | Custom markings Colours Numbering * Minimum order quantities required |
| For more information | bsealed.co/enaboltmini |
