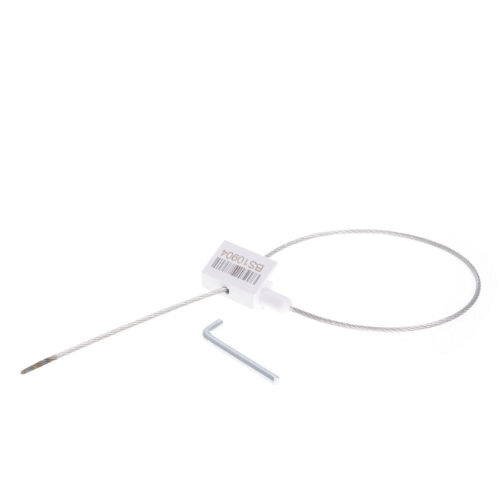

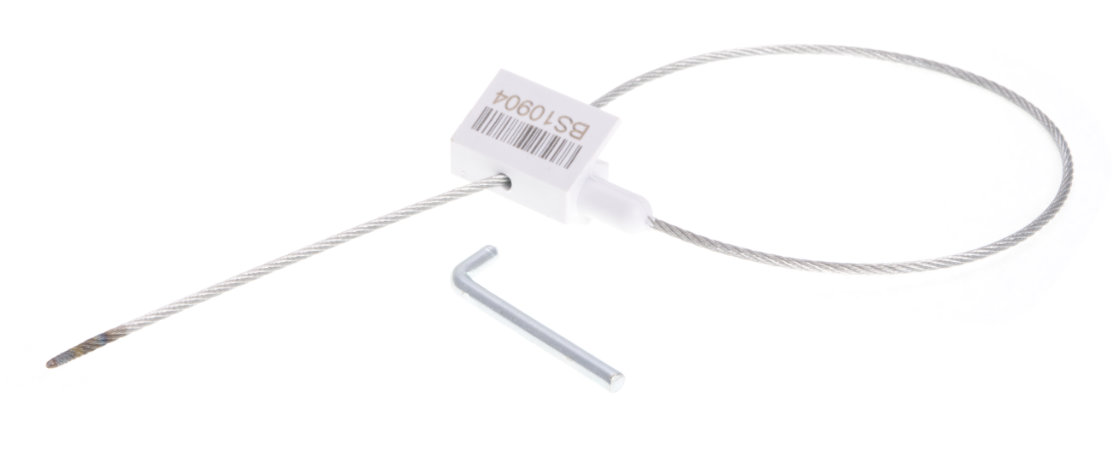

HexSeal Breakaway 1.8mm
Notify me when back in stock
Please note that the online prices apply exclusively to self-checkout transactions and do not extend to phone, email, in-store orders and customers with credit terms.
Product Information
The HexSeal Breakaway is a versatile and secure cable seal designed for adjustable sealing applications where flexibility and tamper evidence are essential. It allows the user to easily adjust the cable to the desired sealing point before locking it in place, ensuring a tight and reliable fit for a wide range of security requirements. Constructed from galvanised low-carbon steel with a durable ABS plastic body, the HexSeal Breakaway provides excellent strength and resilience against impact, corrosion, and environmental wear, making it suitable for both indoor and outdoor use.

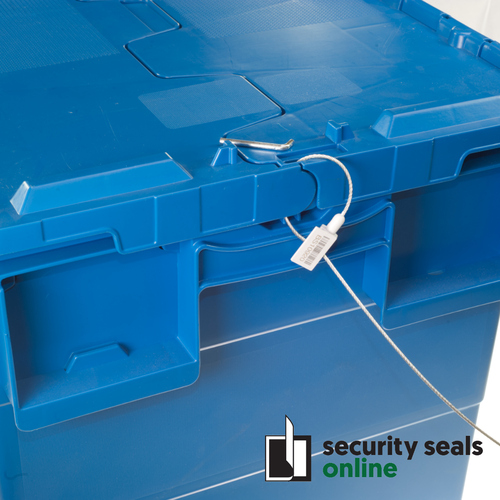

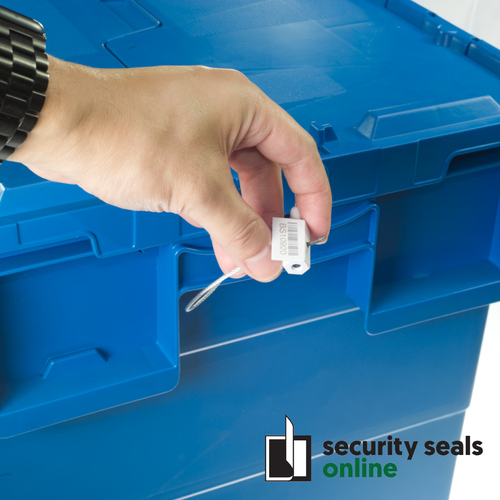

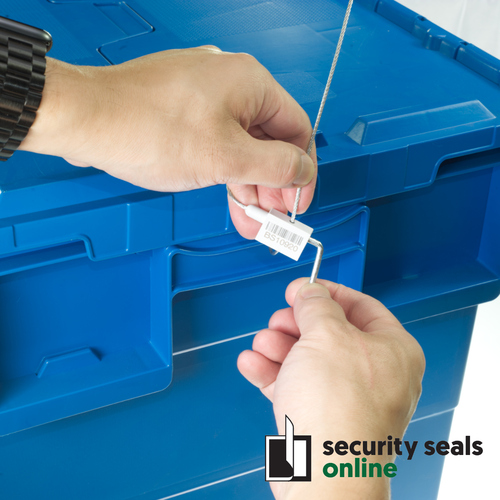

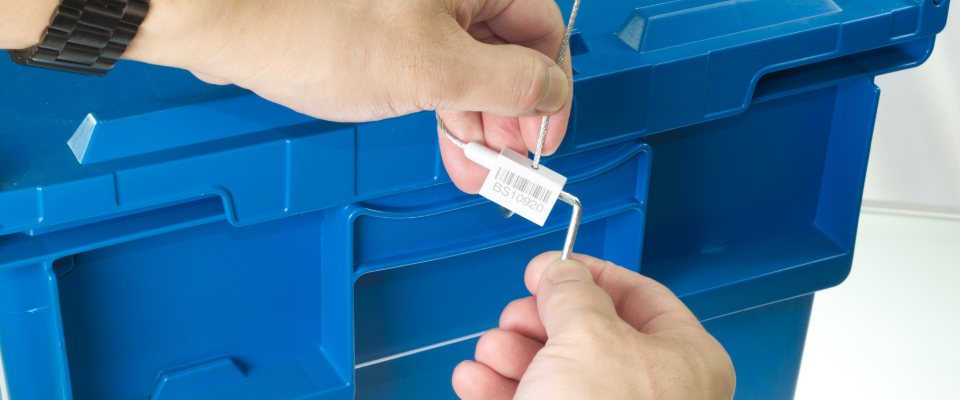

The hexagonal locking head features a large identification tag, offering ample space for laser-engraved serial numbers, barcodes, or company logos, allowing for quick visual verification and traceability. To apply, simply feed the cable through the locking hole, adjust it to the desired length, and twist the included breakaway key into the locking chamber until it snaps off. This action permanently secures the internal locking bolt, ensuring the seal cannot be tampered with or reused. The breakaway locking mechanism enhances user convenience by removing the need for separate tools during application, while a cable cutter is required for final removal, reinforcing its security integrity.
The HexSeal Breakaway combines the strength of metal construction with the usability of a pull-tight design, making it ideal for securing assets where adaptability, reliability, and visible tamper evidence are paramount.
Comparison Table
| CableSeal Micro 1.5 | CableSeal 1.5 | CableSeal EX 1.5 | CableSeal 2.5 | CableSeal 2.5+ | CableSeal 3.5 | CableSeal 3.5+ | CableSeal 5.0 | HexSeal Fixed 1.8 | HexSeal Breakaway 1.8 | HexSeal Pull-Tight 1.8 | PlaskaLock v2 | |
 |
 |
 |
|
|
|
|
|
 |
|
 |
 |
|
| wire length | 200mm | 300mm | 300mm | 300mm | 1,000mm 2,000mm 4,000mm |
300mm | 1,000mm | 300mm | 180mm 220mm 350mm 1,800mm |
325mm | 300mm | 100mm 150mm |
| wire diameter | 1.5mm | 1.5mm | 1.5mm | 2.5mm | 2.5mm | 3.5mm | 3.5mm | 5.0mm | 1.8mm | 1.8mm | 1.8mm | 1.5mm 1.8mm |
| material | galvanised steel aluminium die-casted zinc alloy |
galvanised steel aluminium die-casted zinc alloy |
stainless steel aluminium die-casted zinc alloy plastic |
galvanised steel aluminium die-casted zinc alloy |
galvanised steel aluminium die-casted zinc alloy |
galvanised steel aluminium die-casted zinc alloy |
galvanised steel aluminium die-casted zinc alloy |
galvanised steel aluminium die-casted zinc alloy |
abs plastic stainless steel galvanised steel |
abs plastic stainless steel galvanised steel |
abs plastic stainless steel galvanised steel |
polypropylene plastic chrome steel |
| locking head | 24mm x 14mm x 4.9mm | 25mm x 20mm x 6.3mm | 25mm x 25mm x 7.5mm | 25mm x 20mm x 6.3mm | 25mm x 20mm x 6.3mm | 25mm x 27.6mm x 8mm | 25mm x 27.6mm x 8mm | 28mm x 37mm x 9mm | 27mm x 20mm (BT) 26mm x 12mm |
27mm x 20mm | 26mm x 12mm | 40mm x 24mm x 6.3mm |
| break strength | >250kg-f | >250kg-f | >250kg-f | >450kg-f | >450kg-f | >1,000kg-f | >1,000kg-f | >1,000kg-f | >150kg-f | >150kg-f | >150kg-f | >120kg-f >100kg-f (type-f) |
| iso/pas 17712 | yes | yes | yes | |||||||||
| optional | poly-sheathe | nylon |
Specifications
| Features | Cables are non-preformed steel and will splay upon cutting thereby preventing rejoining. |
| Material | Cable: Braided steel cable Body: ABS |
| Colours | White |
| Dimensions | Cable length: 300mm Cable diameter: 1.8mm Locking body: 12mm x 22mm Tag size: 27mm x 20mm |
| Markings | Serial numbers Barcode, Code 128 * May include B-Sealed markings |
| Print method | Laser engraved |
| Breaking strength | Tensile strength greater than 150kg-f |
| Applications | Freight and logistics containers Air cargo and shipping containers Truck and trailer doors Rail cars and tanker trucks Utility meters and calibration equipment Warehouse and distribution centre gates Chemical and fuel storage valves Postal and courier bags Cash-in-transit and security trolleys Waste management and recycling bins Toolboxes and equipment cases Sealing of restricted access areas or control panels |
| Customisations | Custom markings Colours Cable length Numbering Barcode * Minimum order quantity required |
| For more information | bsealed.co/hexseal |
