HexSeal Fixed 1.8mm
Notify me when back in stock
Please note that the online prices apply exclusively to self-checkout transactions and do not extend to phone, email, in-store orders and customers with credit terms.
Product Information

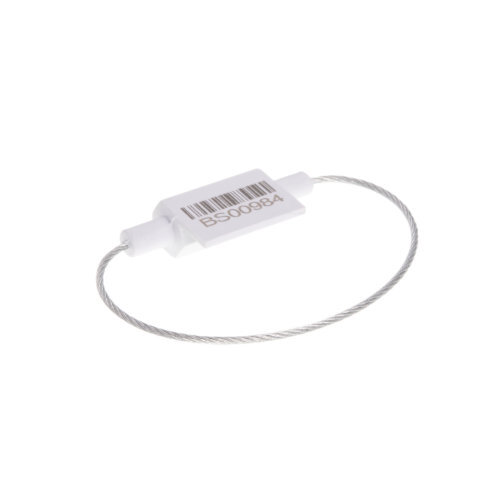

The HexSeal Fixed is a durable and easy-to-use fixed-length security seal, designed for reliable tamper-evident applications. Constructed from galvanised low-carbon steel and ABS plastic, this seal combines strength and lightweight practicality. The hexagonal locking head features a large tag, making it ideal for barcoding or custom markings, allowing for easy identification and traceability.
The fixed-length design includes a locking hole that securely accommodates the bolt at the end of the cable. Once applied, it forms a fixed-length loop that ensures consistent security, preventing loosening or tampering. Its self-locking mechanism makes it simple to apply without requiring specialized tools, while removal requires a cable cutter, ensuring that any attempt to bypass the seal is evident.
Designed for versatility, the HexSeal Fixed is suitable for a wide range of applications, including cargo containers, trucks, railcars, storage tanks, and utility equipment. Its robust construction ensures long-lasting performance in harsh environments, making it an ideal solution for industries where tamper evidence, safety, and accountability are critical.
Comparison Table
| CableSeal Micro 1.5 | CableSeal 1.5 | CableSeal EX 1.5 | CableSeal 2.5 | CableSeal 2.5+ | CableSeal 3.5 | CableSeal 3.5+ | CableSeal 5.0 | HexSeal Fixed 1.8 | HexSeal Breakaway 1.8 | HexSeal Pull-Tight 1.8 | PlaskaLock v2 | |
 |
 |
 |
|
|
|
|
|
 |
|
 |
 |
|
| wire length | 200mm | 300mm | 300mm | 300mm | 1,000mm 2,000mm 4,000mm |
300mm | 1,000mm | 300mm | 180mm 220mm 350mm 1,800mm |
325mm | 300mm | 100mm 150mm |
| wire diameter | 1.5mm | 1.5mm | 1.5mm | 2.5mm | 2.5mm | 3.5mm | 3.5mm | 5.0mm | 1.8mm | 1.8mm | 1.8mm | 1.5mm 1.8mm |
| material | galvanised steel aluminium die-casted zinc alloy |
galvanised steel aluminium die-casted zinc alloy |
stainless steel aluminium die-casted zinc alloy plastic |
galvanised steel aluminium die-casted zinc alloy |
galvanised steel aluminium die-casted zinc alloy |
galvanised steel aluminium die-casted zinc alloy |
galvanised steel aluminium die-casted zinc alloy |
galvanised steel aluminium die-casted zinc alloy |
abs plastic stainless steel galvanised steel |
abs plastic stainless steel galvanised steel |
abs plastic stainless steel galvanised steel |
polypropylene plastic chrome steel |
| locking head | 24mm x 14mm x 4.9mm | 25mm x 20mm x 6.3mm | 25mm x 25mm x 7.5mm | 25mm x 20mm x 6.3mm | 25mm x 20mm x 6.3mm | 25mm x 27.6mm x 8mm | 25mm x 27.6mm x 8mm | 28mm x 37mm x 9mm | 27mm x 20mm (BT) 26mm x 12mm |
27mm x 20mm | 26mm x 12mm | 40mm x 24mm x 6.3mm |
| break strength | >250kg-f | >250kg-f | >250kg-f | >450kg-f | >450kg-f | >1,000kg-f | >1,000kg-f | >1,000kg-f | >150kg-f | >150kg-f | >150kg-f | >120kg-f >100kg-f (type-f) |
| iso/pas 17712 | yes | yes | yes | |||||||||
| optional | poly-sheathe | nylon |
Specifications
| Features | Cables are non-preformed steel and will splay upon cutting thereby preventing rejoining. |
| Material | Cable: Braided galvanised steel cable Body: ABS |
| Colours | White |
| Dimensions | Cable length: 220mm Cable diameter: 1.8mm Locking body: 12mm x 23mm Tag size: 27mm x 20mm |
| Markings | Serial numbers Barcode, Code 128 * May include B-Sealed markings |
| Print method | Laser engraved |
| Breaking strength | Tensile strength greater than 150kg-f |
| Applications | Securing cargo containers during shipping Locking truck and trailer doors Sealing railcars and shipping wagons Securing storage tanks and drums Locking utility boxes, electrical cabinets, and meter boxes Sealing high-value or sensitive shipments Securing airline and airport trolleys Tamper-evident sealing for industrial equipment Use in logistics and supply chain security Securing luggage or high-value bags in transit |
| Customisations | Custom markings Colours Cable length Numbering Barcode * Minimum order quantity required |
| For more information | bsealed.co/hexseal |
