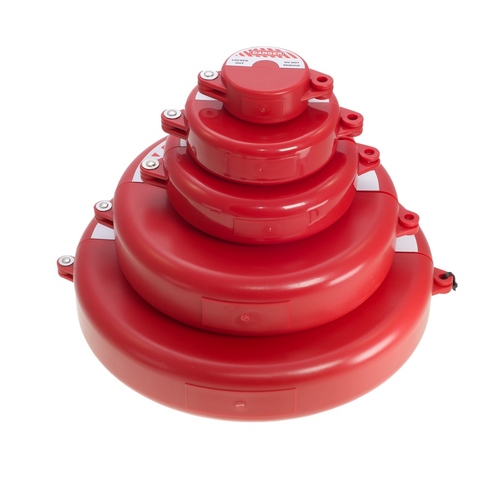

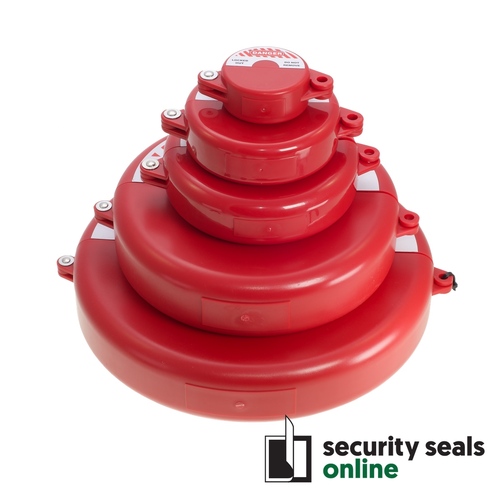

Standard Gate Valve Lockout

inc. GST In Stock
In stock

Multi purpose Sealing equipment Sealing valves Sealing cabinets Sealing cages Roll cages Doors & hatches Medical & safety equipment


Calculate Shipping

Please note that the online prices apply exclusively to self-checkout transactions and do not extend to phone, email, in-store orders and customers with credit terms.

Product Information

Using B-Sealed's range of tamper evident seals with lockout system will enable you to have a total tamper evident solution.

Wide range of lockout systems, when used in conjunction with security seals to give a holistic tamper evident solution.
Box lockout is suitable sealing power cables and hoses.
Gate valve lockout is suitable sealing taps.
Transparent gate valve lockout available.


Features Made from durable ABS.
Withstand temperatures from -30°C to 100°C.
Material ABS plastic
Colours Red

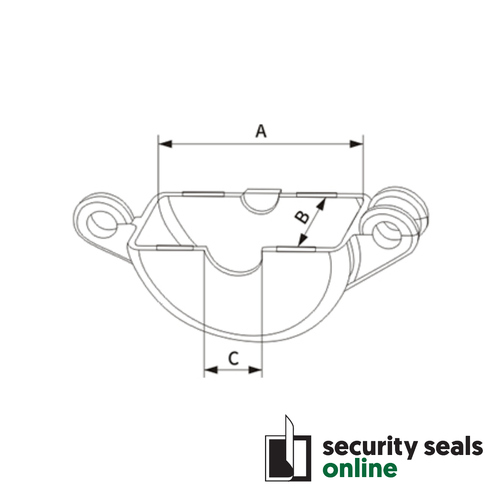

Dimensions GV01 80mm (Suitable for valves ⌀25mm to ⌀60mm)
Diameter: 80mm round
Height: 36mm
Hole diameter: 20mm round
Padlock hole diameter: 9.5mm

GV02 142mm (Suitable for valves ⌀63mm to ⌀125mm)
Diameter: 142mm round
Height: 46mm
Hole diameter: 45mm round
Padlock hole diameter: 9.5mm

GV03 184mm (Suitable for valves ⌀127mm to ⌀165mm)
Diameter: 184mm round
Height: 53mm
Hole diameter: 63mm round
Padlock hole diameter: 9.5mm

GV04 280mm (Suitable for valves ⌀167mm to ⌀250mm)
Diameter: 280mm round
Height: 76mm
Hole diameter: 89mm round
Padlock hole diameter: 9.5mm

GV05 364mm (Suitable for valves ⌀250mm to ⌀330mm)
Diameter: 364mm round
Height: 76mm
Hole diameter: 105mm round
Padlock hole diameter: 9.5mm
Markings Danger, Do not remove
Customisations Custom markings

Ask us for customised options (minimum order quantity required)
For more information
Request a quote for larger order quantities and inquire about our customised branding options
